PhAIL v1.0

How researchers use this

v1.0 supports three workflows: use the public data directly, run the evaluation framework on your own rig, or submit a checkpoint for managed evaluation.

uv run --with positronic \
  python -m positronic.cfg.phail.v1_0

pip install positronic
python -m positronic.cfg.phail.v1_0

uv run --with positronic \
  positronic-server \
  [email protected]_0.ds.rollouts

pip install positronic
positronic-server \
  [email protected]_0.ds.rollouts

For evaluation on your own rig, see Reproduce inference rollouts on a comparable rig below. To submit a checkpoint for managed evaluation on our hardware, email [email protected] – we onboard new submitters by hand for v1.0.

Protocol

The full v1.0 evaluation protocol is documented in the v1.0 white paper. Summary of what's relevant for reproducibility:

A session is run by a single human evaluator. For each episode:

1. The evaluator places the outbound tote on the left or right of the table, places the exterior camera on the left or right, and loads N items of one object class into the inbound tote.
2. The system selects which checkpoint to run via a BalancedSampler – it weights selection toward under-represented (model, configuration) cells. The operator never sees model identity during evaluation; it lives only in the recorded run log.
3. The evaluator presses Start. The model runs autonomously at 15 Hz, receiving wrist + exterior camera frames, end-effector pose, and the unified language prompt. Each vendor uses its own codec – some absolute EE pose, some joint deltas, some other variants; positronic mediates between the codec and the FR3 control interface.
4. The episode ends on one of: operator Stop (success path), operator Safety Stop (physical risk – typically items about to fall off the table), or timer expiry (Ran out of time, at 30 s × N). A System outcome exists for irrecoverable controller errors but did not occur in practice in v1.0.
5. The evaluator records outcome and successful item count.

In v1.0 the operator's role is intentionally minimal: they call safety stop only when items risk falling, and otherwise wait for the timer. The dominant non-success outcome is therefore Ran out of time, not a functional failure call. v1.1+ will replace operator-driven termination with scale-based automated success detection.

Metrics (canonical definitions in the white paper):

• UPH – units per hour, averaged equally across object classes.
• MTBF/A – total evaluation time / number of failed runs, where a failed run is any outcome ≠ Success. (PhAIL does not separately distinguish MTBF from MTBA.)
• Completion – fraction of items successfully moved, averaged equally across object classes.

Compute topology for v1.0. ACT and SmolVLA inference ran on a GPU notebook physically connected to the robot. GR00T ran on a separate machine on the same local network as the notebook. OpenPI requires ≥70 GB VRAM, which exceeded the notebook's capacity – it was therefore served from Nebius eu-north1 (Finland), while the robot and notebook are in Cyprus. The OpenPI numbers therefore include Cyprus → Finland round-trip latency on every inference request; reproducers either replicate the cross-continent arrangement or should expect throughput shifts when changing it.

Hardware & fixtures

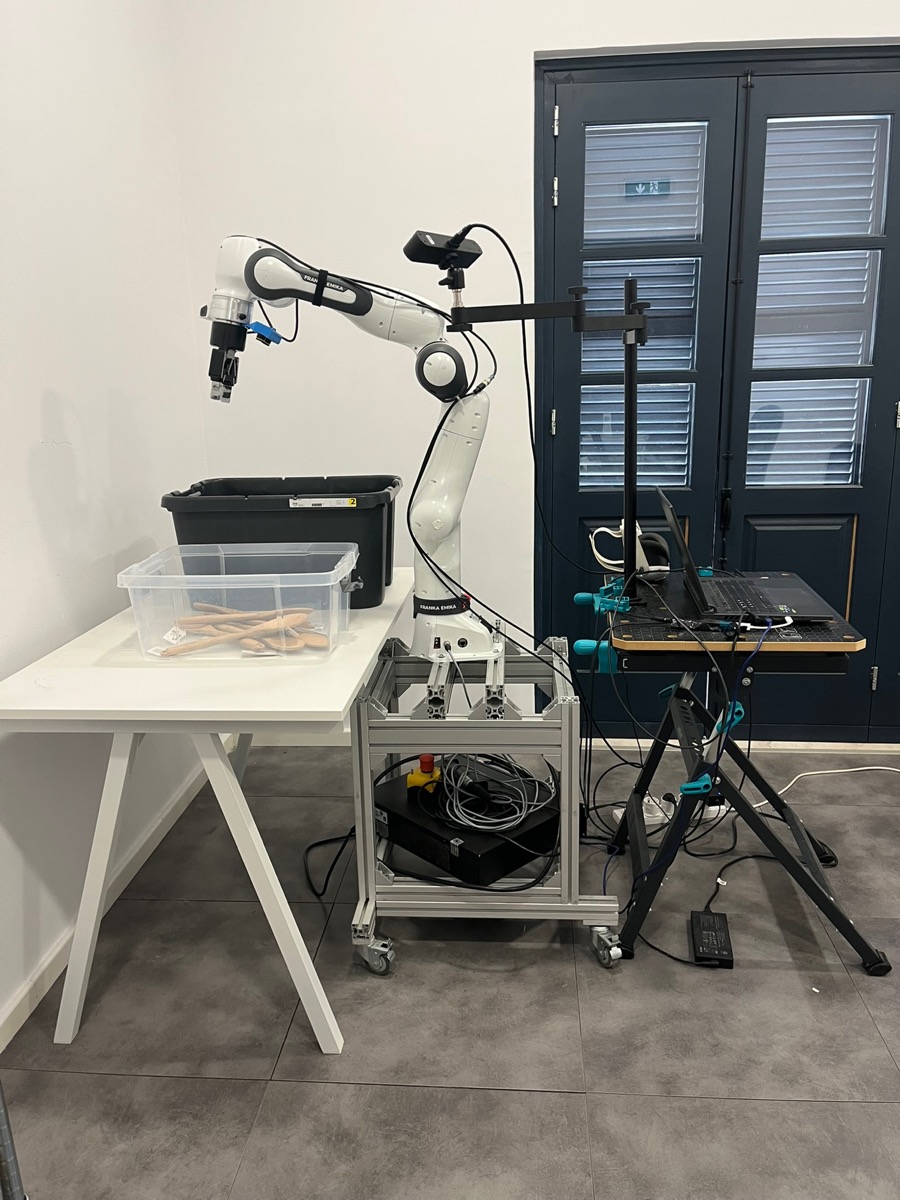

The station is a single mobile workcell: a Franka Research 3 arm on a custom aluminum-extrusion frame with caster wheels, so the whole rig can be rolled into position without re-calibrating against its fixtures. The arm carries a Robotiq 2F-85 parallel gripper, mounted via the DROID hardware convention (which also fixes the wrist-camera placement).

Two Stereolabs ZED cameras feed the policy server at 720p, 30 fps with on-chip image enhancement: a ZED Mini bolted to the wrist, and a ZED 2i fixed to a separate stationary desk that also holds the controller laptop. Only the left view of each stereo pair is used as input.

The two storage totes sit on a plain table (IKEA Trotten 120 × 70 cm, article 294.249.42), and the arm's mobile base is rolled into position next to it before each session.

Tote positions on the table are deliberately not fixed. At the start of each session the evaluator places both totes wherever there's room on the surface – the benchmark measures whether a policy can find the totes, not whether it has memorized their coordinates.

• Source (transparent) tote: JUMBO plastic storage box with clip lid, 20 L (45 × 34 × 20.5 cm), item QTS110001.
• Destination (grey) tote: IKEA KLAMTARE box with lid, article 702.923.64.

The four manipulation tasks each use a single IKEA-sourced object class:

The evaluator places a known count of items into the source tote at episode start; that count is part of the recorded episode metadata, not derived after the fact.

FR3 controller runs Control 5.8.1; the Robotiq 2F-85 firmware version is not recorded for v1.0. ZED SDK 5.0.

Models evaluated

Four VLAs, fine-tuned from public base checkpoints on the v1.0 teleoperation dataset, each served from a vendor-specific docker image: positro/openpi:v0.2.1 (OpenPI π_0.5), positro/gr00t:v0.2.1 (NVIDIA GR00T N1.6), and positro/positronic:v0.2.1 (Hugging Face SmolVLA and Action Chunking Transformer).

Pin IMAGE_TAG=v0.2.1 for the v1.0 release. Run each vendor server from the base docker-compose.yml with the public checkpoint path explicitly overridden:

cd positronic/docker

# OpenPI π₀.₅  (≥70 GB VRAM)
IMAGE_TAG=v0.2.1 docker compose run --service-ports openpi-server phail \
  --checkpoints_dir=s3://positronic-public/phail/v1.0/models/openpi/

# NVIDIA GR00T N1.6
IMAGE_TAG=v0.2.1 docker compose run --service-ports groot-server phail \
  --checkpoints_dir=s3://positronic-public/phail/v1.0/models/gr00t/

# Hugging Face SmolVLA
IMAGE_TAG=v0.2.1 docker compose run --service-ports lerobot-server phail \
  --checkpoints_dir=s3://positronic-public/phail/v1.0/models/smolvla/

# Action Chunking Transformer
IMAGE_TAG=v0.2.1 docker compose run --service-ports lerobot-0_3_3-server phail \
  --checkpoints_dir=s3://positronic-public/phail/v1.0/models/act/

Each server is reachable on port 8000 inside its container; use --service-ports to map it on the host, or docker --context <host> compose ... to deploy to a remote machine.

Reproduce inference rollouts on a comparable rig

With the rig from Hardware & fixtures and the four servers from Models evaluated running, drive the FR3 with the positronic client at the same pinned tag.

The canonical v1.0 invocation, extracted from a session's run_metadata_*.yaml:

cd positronic/docker

IMAGE_TAG=v0.2.1 docker compose run --rm positronic-inference phail \
  [email protected]_multiple \
  --policy.sampler.balance=0.5 \
  --output_dir=<your-output-dir>

The phail_multiple policy config defaults the per-vendor servers to smolvla:8000, act:8001, groot:8000, openpi:8000 on hostnames matching our internal lab network. Override them on the CLI to match yours:

... \
  --policy.smolvla.host=<smolvla-host> \
  --policy.act.host=<act-host>         --policy.act.port=<act-port> \
  --policy.groot.host=<groot-host> \
  --policy.openpi.host=<openpi-host>

For non-docker invocation, check out positronic at the v0.2.1 tag and run uv run positronic-inference phail ... with the same flags. The positronic README covers the broader wire-up of robot driver, gripper, cameras, and policy servers.

Questions

Anything unclear, missing, or worth fixing? Email [email protected].

Artifacts

• Dataset: s3://positronic-public/phail/v1.0/dataset/
• Model weights: s3://positronic-public/phail/v1.0/models/
• Evaluation framework: positronic v0.2.1
• Docker images: positro/positronic:v0.2.1, positro/openpi:v0.2.1, positro/gr00t:v0.2.1
• White paper (frozen for v1.0): whitepaper.pdf
